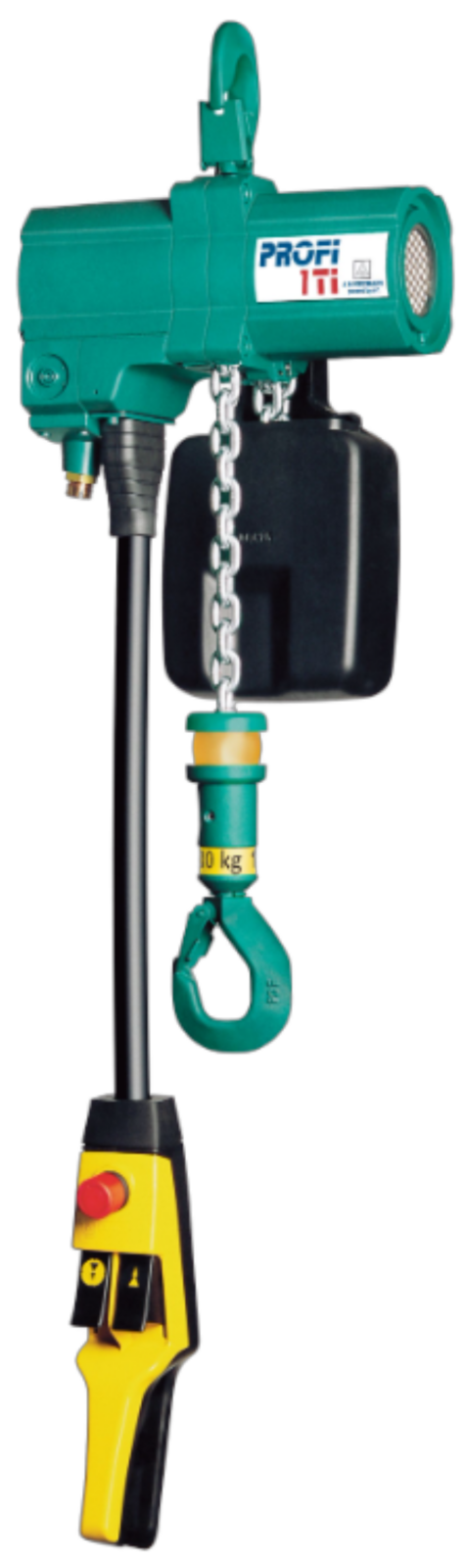

Flameproof Air Hoist
Flameproof Air Hoist
- Brand: JDN
- Capacity: 0.5t to 100.0t
The low maintenance design of this flameproof air hoist, delivers 100%duty cycle in any environmental conditions, and requires only six atmospheres of compressed air whilst remaining immune to dust, mud, dirt, grit, heat, vapours etc. With its self-cooling pneumatic motor and fail-safe brake system, this flameproof air hoist is the perfect choice for hazardous environments such as mines and chemical plants. Available with push, geared, or air trolley configurations.
- Australian Standard: AS 1418
Features
Industries
Documents
Features
- Fail safe brake
- Overload protection
- Pre-lubricated, oil free motor
- Self cooling pneumatic motor
Industries
- Civil
- Construction
- Engineering
- Entertainment
- Infrastructure
- Manufacturing
- Mining/Oil/Gas
Specifications

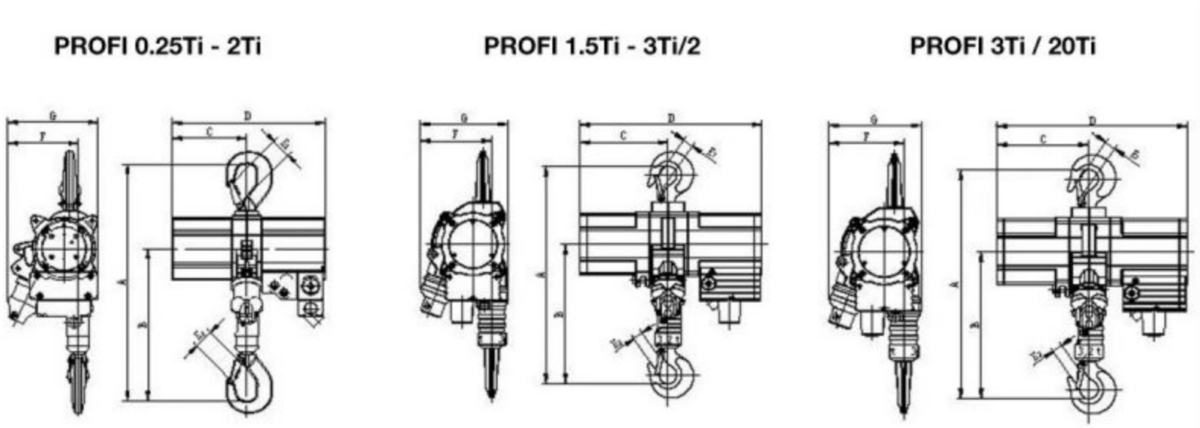

Dimensions
Specifications
| PRODUCT CODE | CAPACITY | FALL OF CHAINS | MOTOR OUTPUT | CHAIN DIMENSION | AIR PRESSURE | AIR CONNECTION | MINIMUM HEADROOM | WEIGHT – 3M STANDARD LIFT |
|---|---|---|---|---|---|---|---|---|
| JDN-05TI | 0.5t | 1 | 1.0kW | 7mm x 21mm | 6 bar | G1/2 | 395mm | 27kg |
| JDN-1TI | 1.0t | 1 | 1.0kW | 7mm x 21mm | 6 bar | G1/2 | 410mm | 28kg |
| JDN-2TI | 2.0t | 2 | 3.5kW | 7mm x 21mm | 6 bar | G1/2 | 544mm | 34kg |
| JDN-3TI | 3.2t | 1 | 3.5kW | 13mm x 36mm | 6 bar | G3/4 | 593mm | 86kg |
| JDN-6TI | 6.3t | 2 | 3.5kW | 13mm x 36mm | 6 bar | G3/4 | 674mm | 110kg |
| JDN-10TI | 10.0t | 2 | 3.5kW | 16mm x 45mm | 6 bar | G3/4 | 813mm | 156kg |
| JDN-16TI | 16.0t | 3 | 3.5kW | 16mm x 45mm | 6 bar | G3/4 | 893mm | 240kg |
| JDN-20TI | 20.0t | 4 | 6.0kW | 16mm x 45mm | 6 bar | G3/4 | 1090mm | 285kg |
| JDN-25TI | 25.0t | 2 | 6.0kW | 22mm x 66mm | 6 bar | G1 | 1282mm | 498kg |
| JDN-37TI | 37.5t | 3 | 6.0kW | 22mm x 66mm | 6 bar | G1 | 1466mm | 880kg |
| JDN-50TI | 50.0t | 4 | 6.0kW | 22mm x 66mm | 6 bar | G1 | 1700mm | 855kg |
| JDN-100TI | 100.0t | 4 | 10.0kW | 31.5mm x 90mm | 6 bar | G11/2 | 2200mm | 2460kg |
