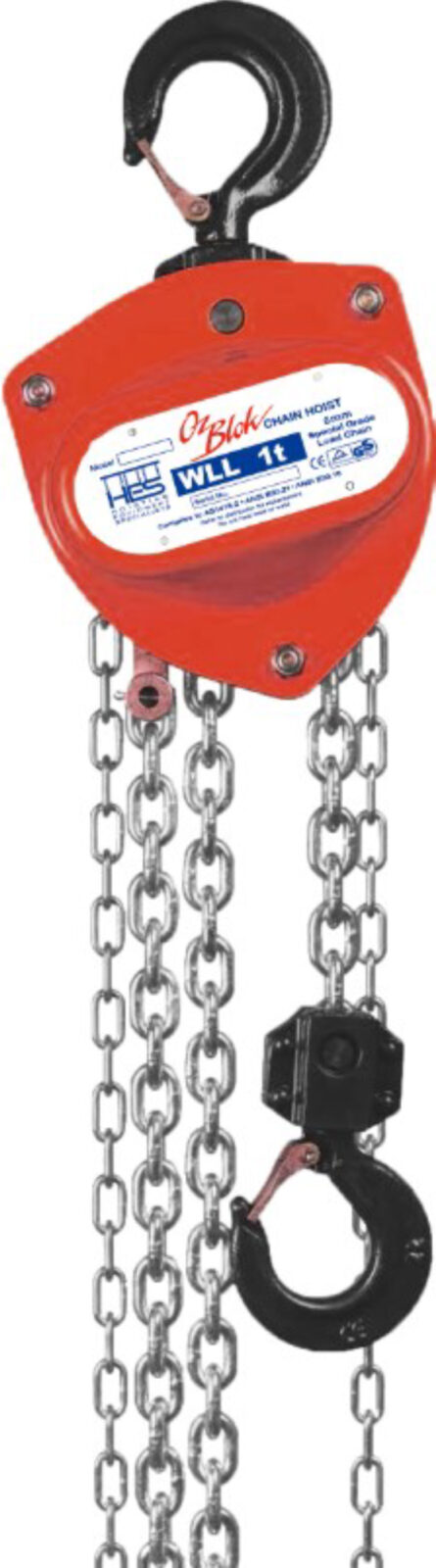

Standard Chain Block
Standard Chain Block
- Brand: OzBlok
- Capacity: 0.25t to 10.00t
Lift, suspend and lower heavy loads with our range of VDS chain blocks. Manual, portable and easy to maintain, these robust and versatile chain blocks are safe and reliable, with a unique handwheel cover with rolled edges, allowing for the hand chain to be operated from various angles.
- Australian Standard: AS 1418
Features
Industries
Documents
Features
- Cast steel safety latches
- Super strength zinc plated alloy load chain
- Lower hook complete with thrust race bearing
- Fully machined lift wheels, supported by needle roller bearings
- Weather protected automatic Weston brake with unique Twin Pawls
Industries
- Agriculture
- Construction
- Docks
- Engineering
- Infrastructure
- Logistics
- Manufacturing
- Mining
- Utilities
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | STANDARD LIFT | FALLS OF CHAIN | HAND EFFORT TO LIFT W.L.L. | LOAD CHAIN DIAMETER | NET WEIGHT |
|---|---|---|---|---|---|---|
| CBOZ002-3 | 0.25t | 3m | 1 | 21kg | 4mm | 6.00kg |
| CBOZ005-3 | 0.5t | 3m | 1 | 23kg | 5mm | 9.18kg |
| CBOZ010-3 | 1.0t | 3m | 1 | 30kg | 6mm | 11.90kg |
| CBOZ015-3 | 1.5t | 3m | 1 | 32kg | 8mm | 17.70kg |
| CBOZ020-3 | 2.0t | 3m | 1 | 35kg | 8mm | 17.62kg |
| CBOZ030-3 | 3.0t | 3m | 2 | 37kg | 8mm | 24.80kg |
| CBOZ050-3 | 5.0t | 3m | 2 | 41kg | 10mm | 36.76kg |
| CBOZ100-3 | 10.0t | 3m | 4 | 39kg | 10mm | 77.50kg |
| CBOZ005-6 | 0.5t | 6m | 1 | 23kg | 6mm | 13.20kg |
| CBOZ010-6 | 1.0t | 6m | 1 | 30kg | 6mm | 16.52kg |
| CBOZ015-6 | 1.5t | 6m | 1 | 32kg | 8mm | 23.96kg |
| CBOZ020-6 | 2.0t | 6m | 1 | 35kg | 8mm | 24.00kg |
| CBOZ030-6 | 3.0t | 6m | 2 | 37kg | 8mm | 35.14kg |
| CBOZ050-6 | 5.0t | 6m | 2 | 41kg | 10mm | 52.00kg |
| CBOZ100-6 | 10.0t | 6m | 4 | 39kg | 10mm | 106.00kg |
Dimensions
| PRODUCT CODE | A | B | C | H |
|---|---|---|---|---|
| CBOZ002-3 | 125mm | 116mm | 25mm | 285mm |
| CBOZ005-3 | 132mm | 148mm | 28mm | 345mm |
| CBOZ010-3 | 151mm | 172mm | 32mm | 376mm |
| CBOZ015-3 | 173mm | 196mm | 36mm | 442mm |
| CBOZ020-3 | 175mm | 210mm | 36mm | 470mm |
| CBOZ030-3 | 173mm | 266mm | 46mm | 490mm |
| CBOZ050-3 | 189mm | 280mm | 46mm | 688mm |
| CBOZ100-3 | 189mm | 463mm | 57mm | 765mm |
| CBOZ005-6 | 132mm | 148mm | 28mm | 345mm |
| CBOZ010-6 | 151mm | 172mm | 32mm | 376mm |
| CBOZ015-6 | 173mm | 196mm | 36mm | 442mm |
| CBOZ020-6 | 175mm | 210mm | 36mm | 470mm |
| CBOZ030-6 | 173mm | 226mm | 46mm | 490mm |
| CBOZ050-6 | 189mm | 280mm | 46mm | 688mm |
| CBOZ100-6 | 189mm | 463mm | 57mm | 765mm |
